Trailer Brake Ram 25mm Rod Actuator 3/8" Ports Single Line Hydraulic Pneumatic
Quantity:

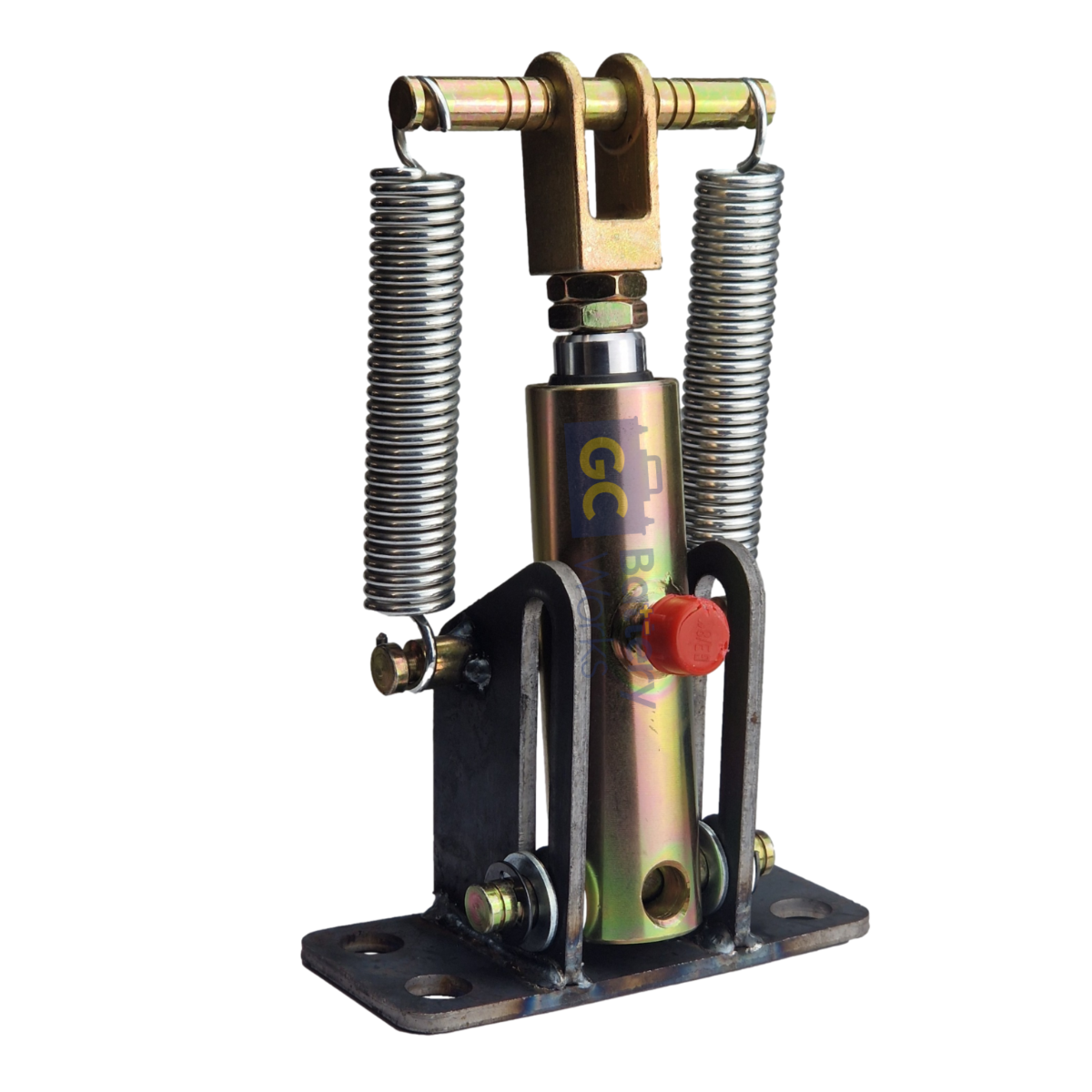

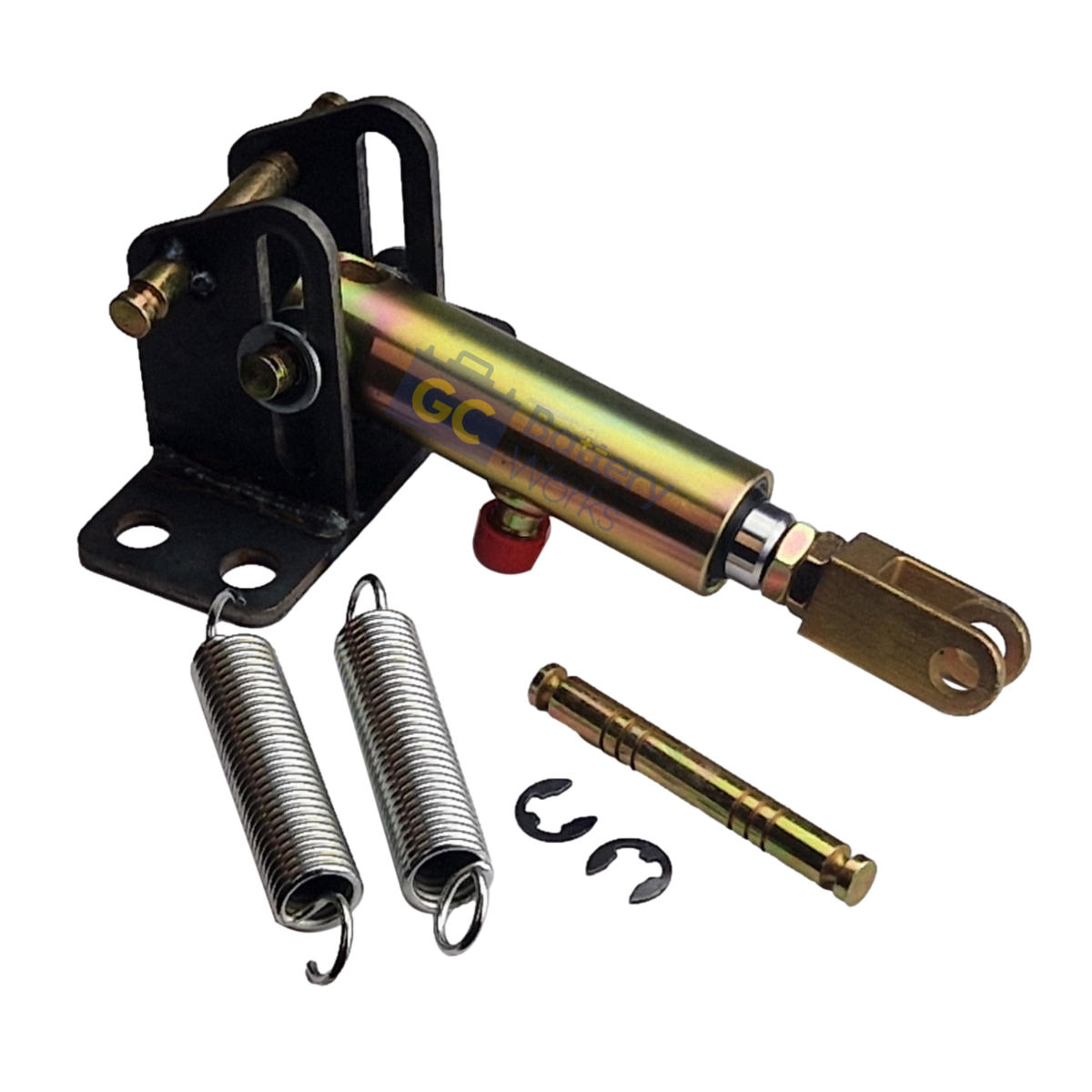

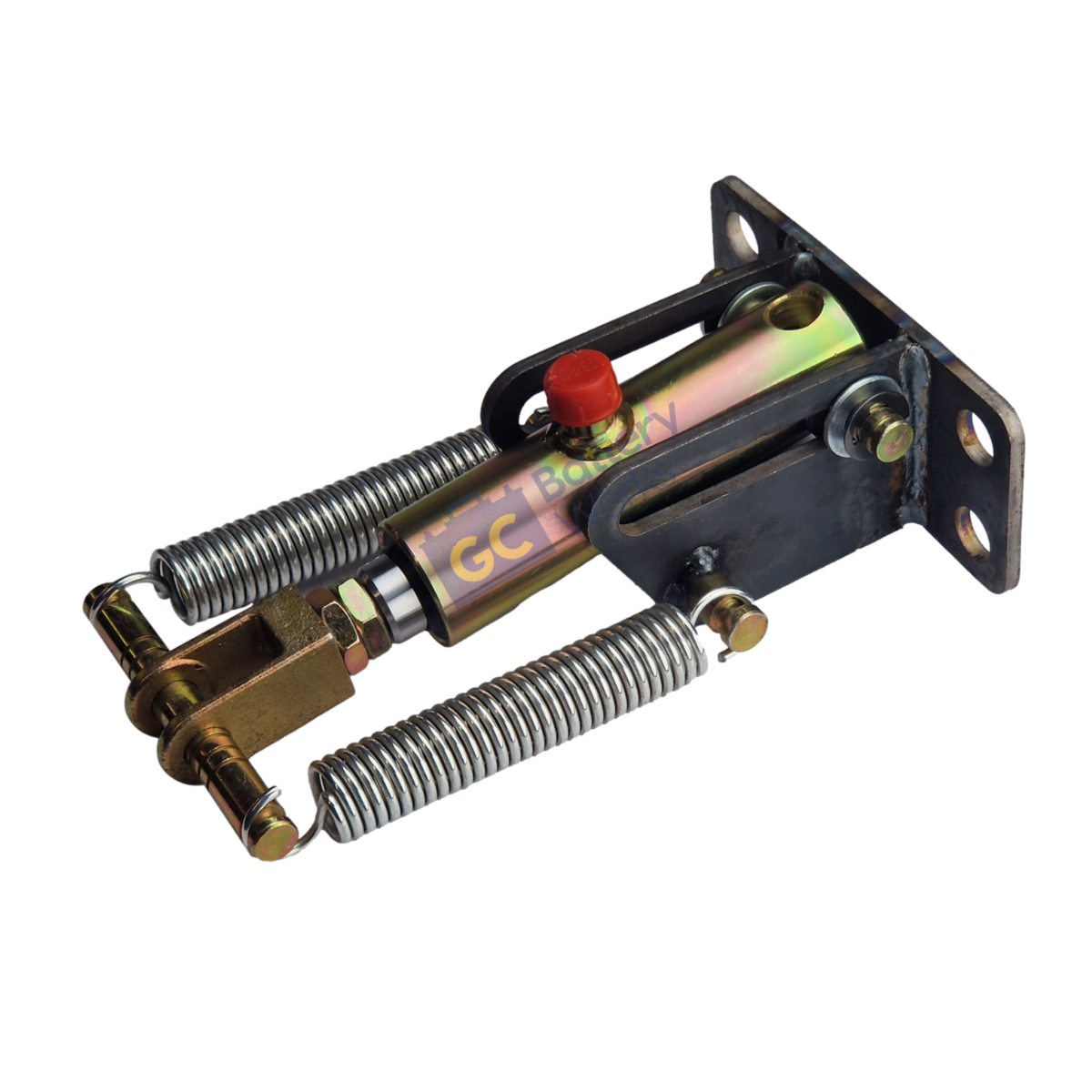

Trailer Brake Actuator Ram, featuring a 25mm Rod with a 75mm stroke. For use in single line brake systems found on agricultural trailers and heavy plant.
Specification (s/a):
- Closed Centres = 200mm
- Stroke = 75mm
- Open Centres = 275mm
- Cylinder OD = 41mm
- Pin Hole = 15mm
- X Drilled RamRod Dia. = 25mm
- Ports = 3/8" BSP
- Includes double ram return springs
- (Mounting Bracket holes C2C = 120 x 38mm.
17.3mm dia holes x 4)
