T-Mech Electrostatic Powder Coating System with Curing Oven and 220L Sandblasting Cabinet

The T-Mech Electrostatic Powder Coating System combines a 220L sandblasting cabinet, an electrostatic powder coating machine, and a curing oven into a single, efficient finishing solution. This integrated setup supports surface cleaning, deburring, rust removal, powder application, and curing, helping you prepare and finish parts with a streamlined workflow. The enclosed sandblasting cabinet minimizes dust and keeps debris contained, allowing you to work with your preferred abrasive media safely.

Sandblasting cabinet overview
- Enclosed blasting chamber provides a dust-minimizing, safer work environment
- Capacity: 220 liters; Weight: approximately 41 kg
- Exterior dimensions: 138 cm (L) x 89 cm (W) x 56 cm (D)
- Working space: 840 mm (L) x 550 mm (W) x 370–550 mm (H)
- Viewing window: 540 mm (W) x 250 mm (H)
- Power supply: AC 220–240V, 50 Hz
- Lighting: 10 W, 12 VDC LED
- Operating pressure: 40–80 PSI at 15–25 CFM
- Average air consumption: ~270 L/min at 6 bar
- Maximum working pressure: 116.03 psi
- Air inlet: 1/4" NPT
- Abrasive capacity: approximately 18 kg
- Dust port: 63 mm

Powder coating system
- Large 45 L powder capacity suitable for medium-to-large projects
- Fully portable with an easy-to-navigate control panel
- Includes 1 spray gun for powder application
- Powder coating delivers a durable, high-quality finish with strong resistance to wear when cured properly

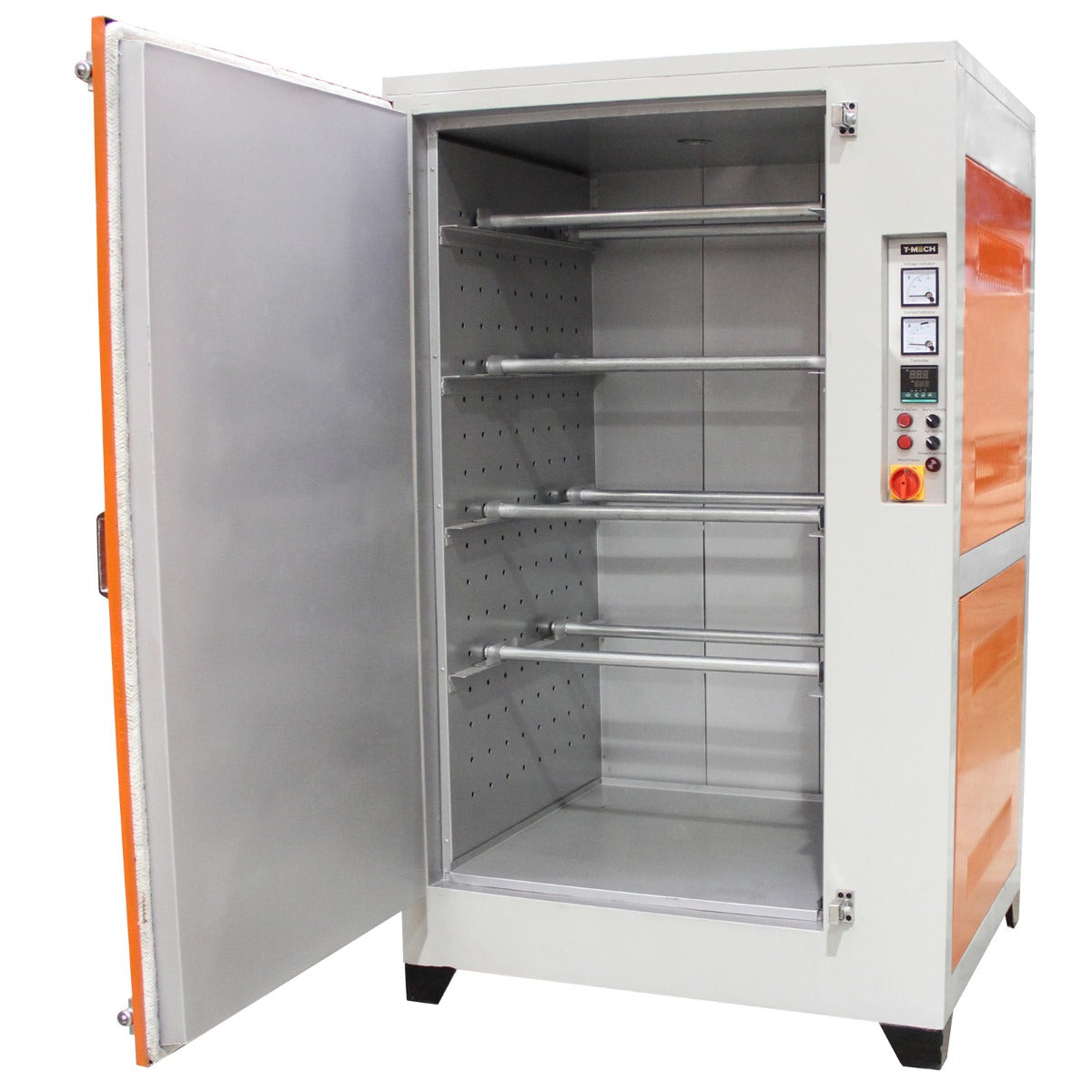

Curing oven
- Completes the powder coating process by curing the applied film
- Provides a consistent heat environment to achieve an even finish

Curing and workflow efficiency
- Designed to handle small to medium-sized parts
- Four adjustable shelves with two rails per shelf for efficient hanging and curing of coated items
- The integrated setup supports end-to-end finishing from cleaning to curing, reducing handling and processing time

Included accessories
- Gun kit, LED lighting, heavy-duty protective gloves
- 4 ceramic spray nozzles
- 5 protective films

System specifications (summary)
- Sandblasting cabinet: 220 L capacity; blue; 41 kg; 138 cm L x 89 cm W x 56 cm D
- Working space: 840 mm L x 550 mm W x 370–550 mm H
- Viewing window: 540 mm W x 250 mm H
- Power: AC 220–240V, 50 Hz
- Lighting: 10 W, 12 VDC LED
- Operating pressure: 40–80 PSI (15–25 CFM)
- Air consumption: ~270 L/min at 6 bar
- Maximum working pressure: 116.03 psi
- Inlet: 1/4" NPT
- Abrasive capacity: ~18 kg
- Dust port: 63 mm
