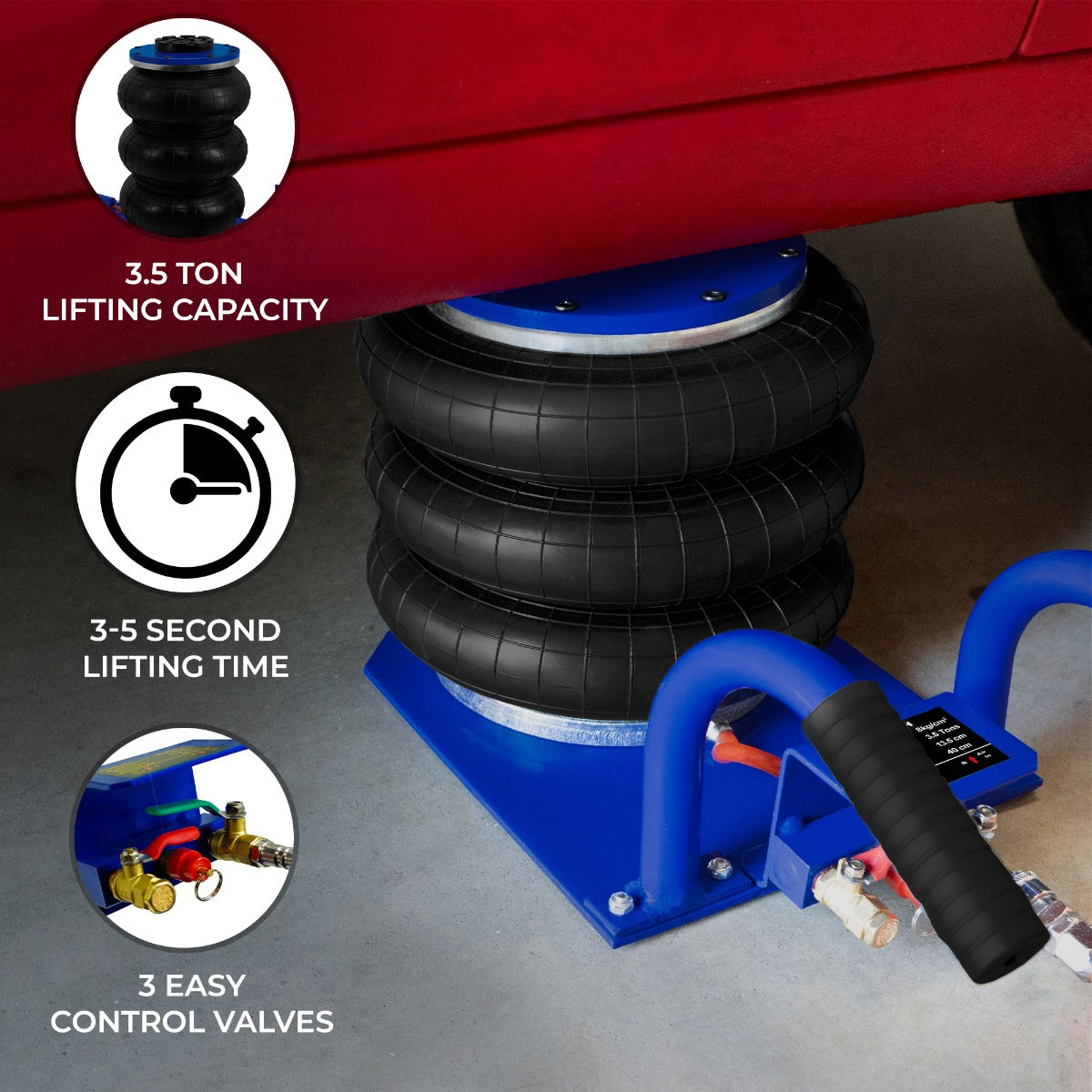

3.5-Ton Air Bag Jack with Carrying Handle
The 3.5-ton Air Bag Jack is a high-performance lifting tool designed for garages and professional workshops, enabling quick and stable vehicle elevation for maintenance tasks.
Constructed with a powder-coated steel frame and three rubber cushions, each topped with a non-slip pad to enhance stability during operation. With a lifting capacity of 3.5 tons (7,700 lbs), it accommodates a wide range of vehicles from compact cars to larger vans.
The lifting range spans 13.5 cm to 40 cm, providing flexibility for diverse lifting tasks. A lifting cycle time of 3-5 seconds supports efficient work. The compact design and two rubber grip handles boost portability for use in a shop or on-site.
The system uses a triple-valve design: an air input valve to connect to a compressor, an air outlet valve for precise height adjustments, and a safety valve to ensure secure operation. Connect to a compatible air compressor, adjust the height with the valves, and lift the vehicle to the desired height.
Elevate your lifting tasks with this heavy-duty 3.5-ton air bag jack—an efficient, portable tool designed for vehicle maintenance in professional and home workshops.
Product Features:
- Heavy-duty frame with 3 rubber cushions
- Capacity: 3.5 Ton / 7,700 lbs
- Lifting range: 13.5 cm to 40 cm (5.3" to 16")
- Lifting time: 3-5 seconds
- Compact & portable with 2 rubber grip handles
Specifications:
- Color: Blue
- Weight: 14.9 kg
- Material: Powder-coated steel
- Minimum height: 165 mm (6.5 in)
- Maximum height: 400 mm (15.7 in)
- Width: 260 mm (10.2 in)
- Depth: 510 mm (20.1 in)
- Lifting range: 135 mm - 400 mm (5.3" - 16")
- Pressure: 8 kg/cm²
- Capacity: 3.5T
- Cushion material: Rubber
- Number of cushions: 3
- Working temperature: -60°C to 50°C
Box Contents:
- 1 x 3.5T Air Bag Jack
